IAMX Studio

Character: channels, faces & publishing

How you put the character in front of people, how it is drawn, and whether it recognises the person in front of it.

All of this lives in the character editor. Open the character from Characters (Open studio) and use the setting groups in the right dock:

Group › tab	What it is for
Channels › Publish	Visibility, publishing, the website widget and every connection snippet.
Channels › Pixel Streaming	Show the character as a cloud MetaHuman.
Channels › Phone	The character's phone number and greeting, plus a test dialler.
Channels › WhatsApp	How the character answers on your WhatsApp Business number.
Channels › Publish preview	Rehearse the real website embed before publishing.
Channels › Versions & publishing	The scene draft, publishing a named release and the published history.
Channels › Capture & export	Scene variations, brand look, scene export and import, and image capture.
Identity & model › LiveFace 2D	A talking head made from one portrait photo.
Behavior › FaceID	Face recognition and ID-card verification for kiosks.

A tab with a padlock is not included in your plan; selecting it opens Plan & Quota. LiveFace 2D and FaceID need the Pro plan or higher in the standard plans; Phone and WhatsApp are Enterprise features.

Publish — putting it in front of people

The Publish Status card shows what the character is currently (PRIVATE, UNLISTED or PUBLIC). Changing Visibility saves immediately.

The character editor's Channels › Publish tab with the Publish Status card, the Visibility menu and the top of the Website Templates card. — **Channels › Publish** for the sample character: **Publish Status** reads **UNLISTED**, **Visibility** is set to **Unlisted — anyone with the link**, and **Republish** and **Open published scene** sit above **Website Templates**.

Visibility	Who can talk to it
Private — only you	Authenticated access is required. Test it with Test conversation while building; a public visitor cannot open a private embed without a key, and Copy website code stays disabled.
Unlisted — anyone with the link	Anyone with the link. The usual choice for a website widget or embed.
Public — everyone	Everyone.

Publishing a Private character makes it Unlisted. A character already set to Public stays Public; one already Unlisted stays Unlisted. In the Characters gallery, Unlisted characters are listed under Draft and Public ones under Published.

Save your work. Finish the look, voice and scene changes and press Save in the toolbar (or Ctrl/Cmd+S). Publishing also saves pending edits and stops if they cannot be saved.
Choose Publish. Use Publish in the editor toolbar, or Publish / Republish in the Publish Status card. This includes the saved Studio background, lighting, camera and character placement. The toolbar state Saved · Scene not published means the saved scene is still waiting to be applied to widgets and embeds.
Open published scene. Check the full scene, voice and animations in a new visitor session.
Choose a website template. In the Website Templates card, preview its size and opening state, then choose Copy website code. Follow Website avatars & embed for installation.

The transparent Floating Companion template hides scenery intentionally. To show the background, choose a scene or portrait template and make sure the Studio scene is published.

For page awareness, spoken website help and navigation actions, also use Save experience → Publish experience on Scene & motion › Experience; see Website experience. Publishing the character does not publish the Experience.

The Publish tab also provides the connection details for each channel:

Character ID — the identifier the Unreal plugin, the web SDK and a direct WebSocket connection need.
UE Plugin (Cloud Mode) — the settings block to paste into the IAMX component, including where your API key goes.
WebSocket (JavaScript) — the starting point for your own app: open the socket with an API key and send start_session with the character ID.
HTML Embed (iframe) — a one-line iframe for any page, with no API key needed for an Unlisted or Public character. When the saved scene is newer than the published one, the card offers Publish scene.

API keys are created under My workspace › API Keys.

A publicly embedded character bills your plan for every visitor conversation. That is normally what you want, but keep an eye on Plan & Quota for the first few days after putting one on a busy page.

Publish preview, versions and capture

Three scene tools sit next to Publish in the Channels group:

Publish preview runs the actual website embed inside the studio so you can inspect it before going live. Preview unsaved scene sends unsaved scene changes only to this test. Tests can produce real conversations.
Versions & publishing keeps a cloud draft, compares it with earlier versions, publishes it under a Release name (Publish scene) and lists the Published history (the latest 20 versions). Restoring a version changes your draft; publish it to make it live.
Capture & export keeps up to 12 Scene variations, copies and applies a brand look, exports and imports a scene file, and saves an image of the scene.

The Channels › Versions & publishing tab with the Cloud draft card, a Compare with menu set to Published scene, and the Publish this draft field. — **Versions & publishing** holds the **Cloud draft**, compares it with the live scene under **Compare with** (here **Published scene**, with **No scene differences.**), and names the release under **Publish this draft**.

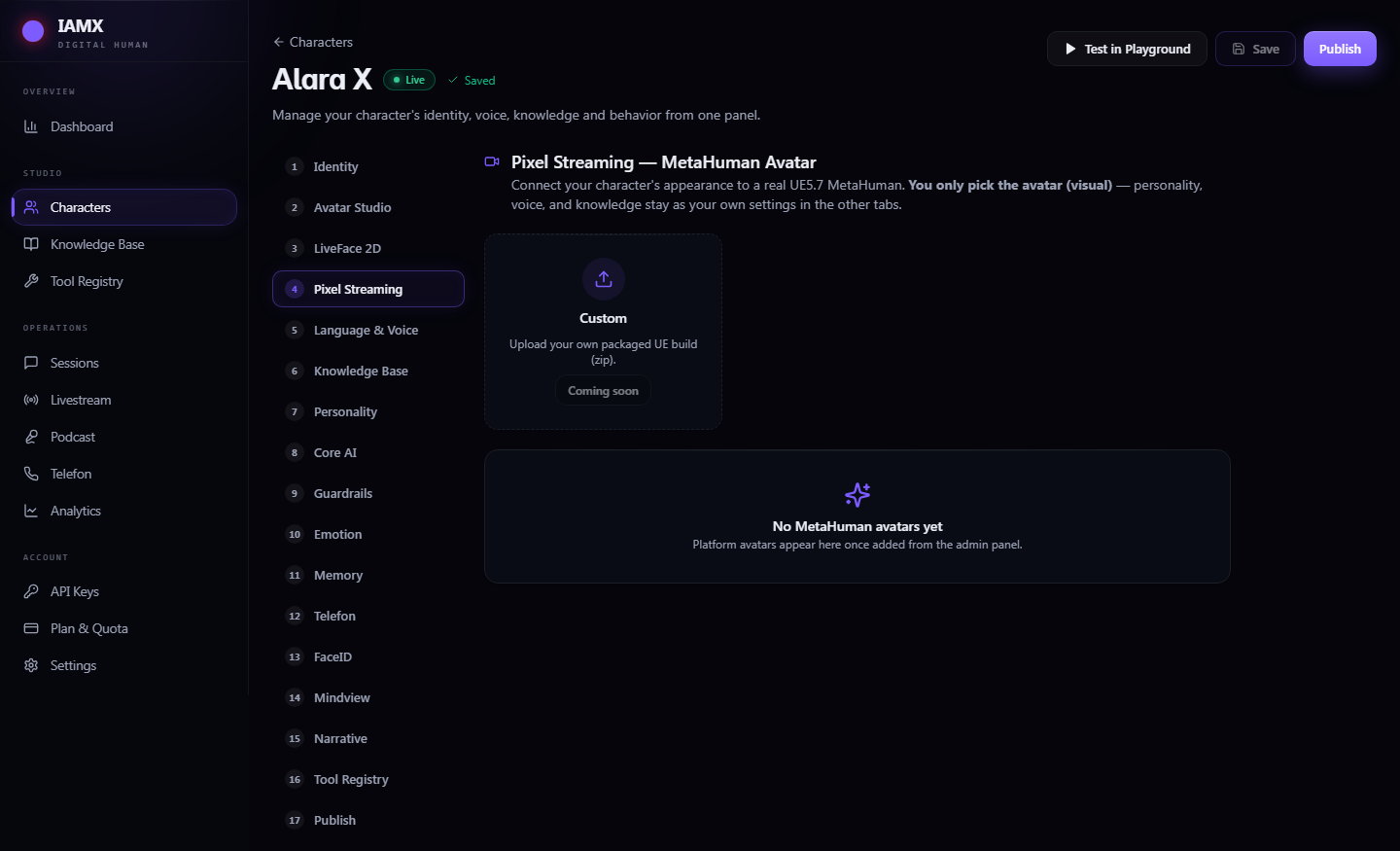

Pixel Streaming — a cloud MetaHuman

This gives the character the body and face of a full Unreal MetaHuman, rendered on a GPU server and streamed to the browser as video. Your visitors need nothing but a web page. You only choose the look — the voice, the knowledge and the rules all stay as you configured them on the other tabs.

On Channels › Pixel Streaming, click an avatar card to assign it, and Disable to go back to the character's own look. If no cards appear, no MetaHuman avatars have been added to the platform yet. Rendering infrastructure is separate from your conversation plan; see Other surfaces.

LiveFace 2D and Pixel Streaming are alternatives, not layers — switching one on switches the other off.

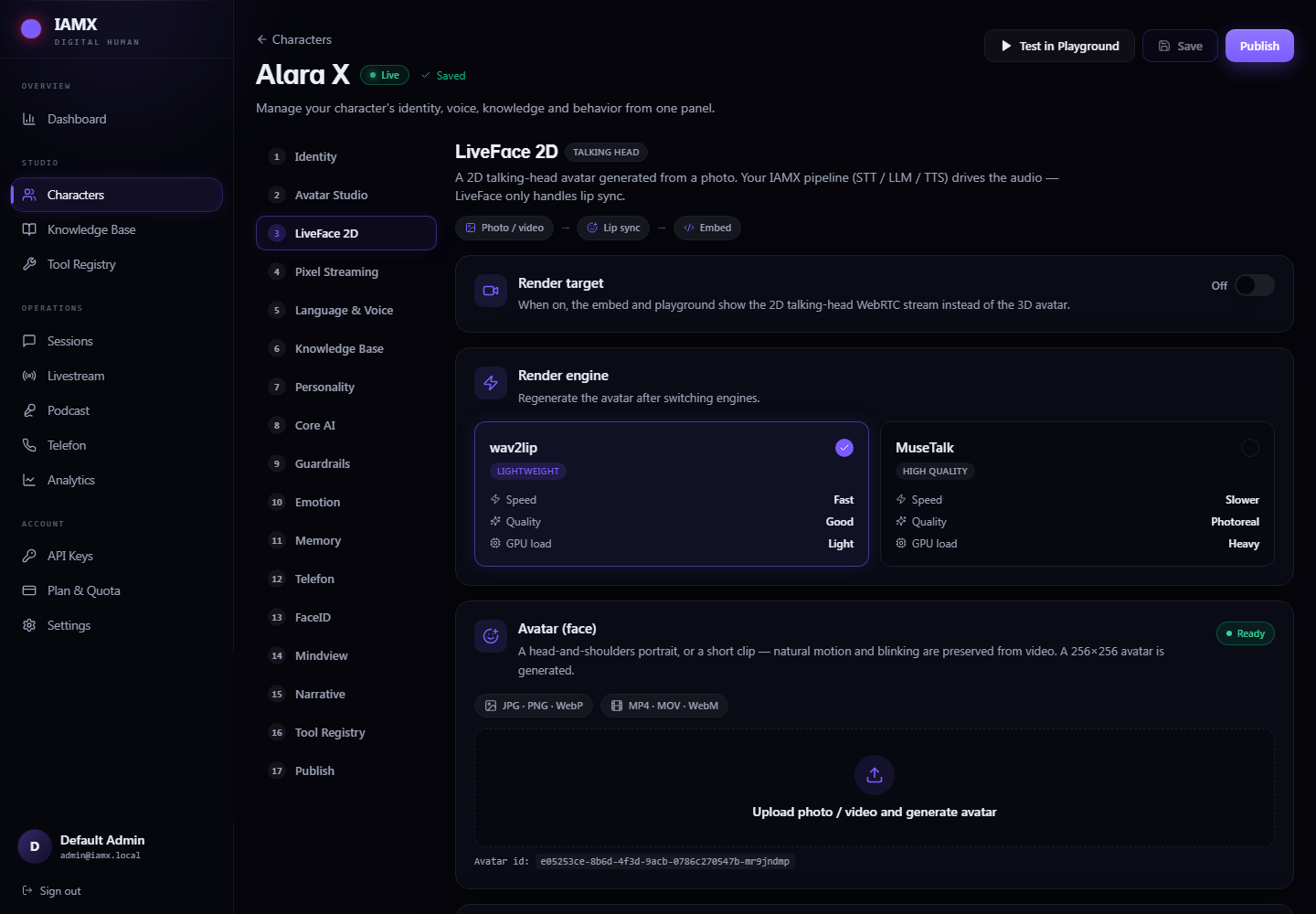

LiveFace 2D — a talking head from one photo

LiveFace renders the character as a real photograph whose mouth moves with the speech, instead of a 3D model. It is the fastest way to a convincing face: one good headshot and you have a talking presenter. You find it under Identity & model › LiveFace 2D (also reachable from the LiveFace 2D button in the character packs bar on the stage). The tab shows the flow Portrait photo → Lip sync → Embed.

Upload a portrait. If the upload area reads Select IAMX Render Engine to upload a portrait, first choose Use IAMX Render Engine in the IAMX Render Engine section. Then, under Avatar (face), choose Upload portrait: a well-lit head-and-shoulders photo facing the camera, JPG or PNG up to 8 MB. A photo is required before the render engine can start.
Switch the render target on. In Render target, turn the switch to On (it becomes available once a portrait is saved). When it is on, embeds show the 2D talking head instead of the 3D avatar. There is one engine; no engine choice is needed.
Press Live preview under Preview & Embed to check that the mouth moves. The engine starts on demand; the first connection may take a few minutes.
Put it on your site. For an Unlisted or Public character, use the website code (Copy website code) or the HTML Embed (iframe) on Channels › Publish: they need no API key and show the 2D face while the render target is on. Copy embed code on this tab gives an iframe with an IAMX_API_KEY placeholder for a key from My workspace › API Keys (Create API key takes you there); use it only for a Private character on a page you control, because the key is visible in the page source.

The render target applies to the character everywhere it is embedded. Use Live preview to check the face, then test the website presentation you intend to publish.

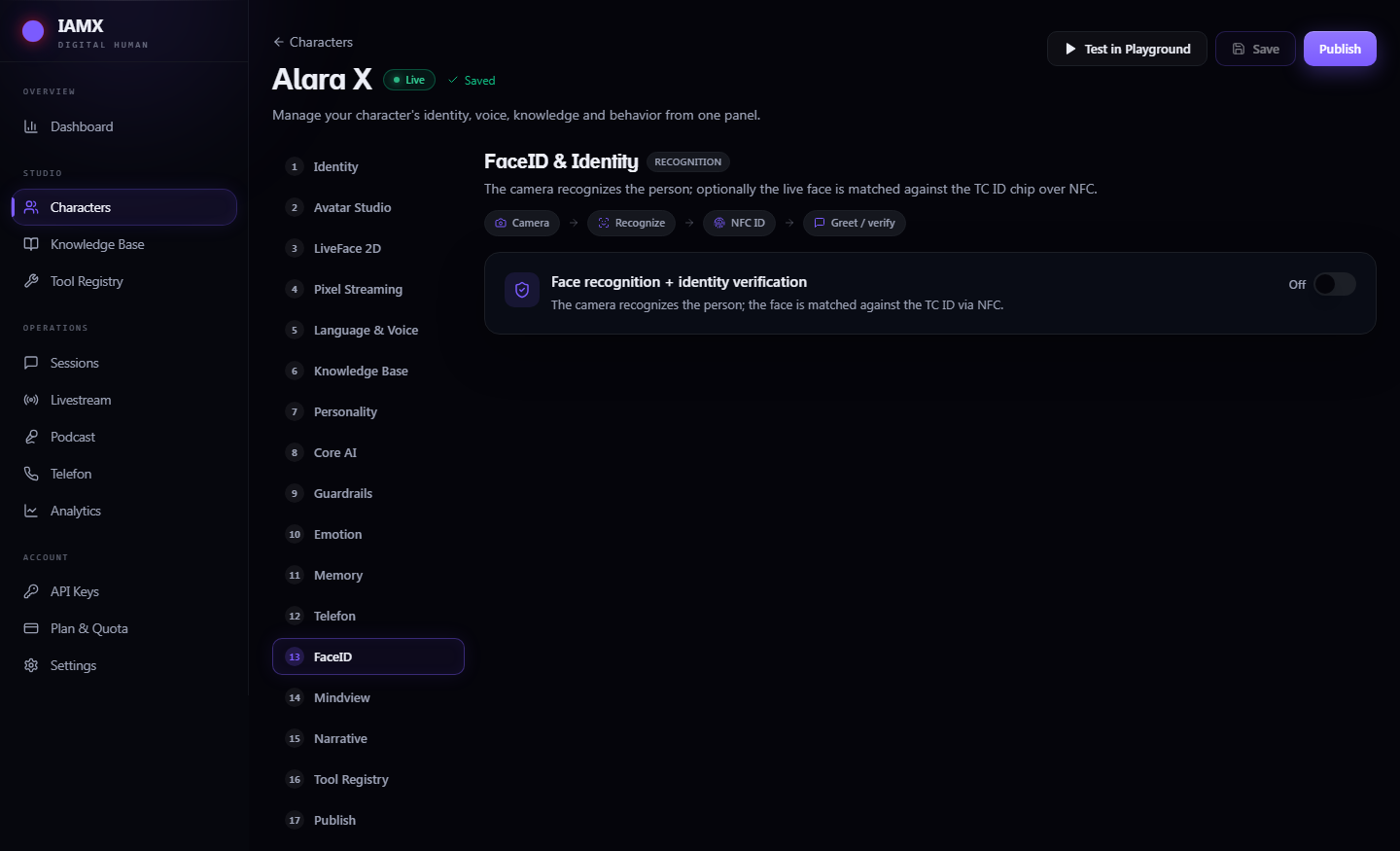

FaceID — recognising the person

With a camera attached, the character can tell whether the person in front of it is someone it has met before, and greet them accordingly. Where identity really matters — banking, for example — it can also match the live face against the chip of a Turkish ID card read over NFC. The tab is Behavior › FaceID, titled FaceID & Identity, with the flow Camera → Recognize → NFC ID → Greet / verify. Switch it on with Face recognition + identity verification.

Server, matching and timing

Setting	Notes
FaceID server	Your own FaceID server, or empty for the platform's shared FaceID.
Match threshold (0–1)	Higher is stricter. 0.40 is recommended.
Exit delay (s)	How long after the person leaves the camera the conversation closes. Lower means faster turnover (a café); 1.5 is recommended.

Behaviour switches

Switch	Set it for
Face match required	On for banking: if the ID chip checks out but the face does not match, the person is refused.
Greet when a person appears	Welcomes new visitors automatically and greets recognised visitors by name. Needs camera permission and a visible face.
Register by name (ID not required)	On for a café or a shop — an unrecognised visitor is asked their name and registered by voice. Off where identity must be proven: people are identified only through the ID card.
Send kiosk camera to the cloud	Only when the FaceID server has no camera of its own. Leave it off if FaceID and the camera run locally.

The greeting scripts

Seven fields under Greeting scripts, each spoken by the kiosk exactly as written (they do not go to the language model), with {name} replaced by the visitor's name. Clear a field and save it to skip that greeting.

Field	Example line
Recognized person (face)	"Welcome back, {name}. Good to see you again."
Unrecognized person (face)	"Hello there. I don't think we've met — what's your name?"
Request ID (registration off)	"Could you hold your ID card to the reader for me?"
Verified returning person	"You're already verified, {name}. How can I help?"
Identity verified (NFC)	"Thank you, {name}. You're verified."
Face didn't match (NFC)	"I'm sorry, the photo on the card doesn't match. Please see a colleague at the desk."
No live face (NFC)	"I can't see you clearly — could you look at the camera?"

These text fields save when you click away from them, and the switches save as soon as you flip them. Type a greeting and press Ctrl+S without leaving the box and it is not stored. Click elsewhere on the page first.

Leave the FaceID server field blank only for demos — blank means the shared platform face database. For a bank, a clinic or anywhere with real customers, point it at your own server so faces never leave your infrastructure.

Phone — give it a phone number

Attach a real phone number and the character answers calls in its own voice, with all of its knowledge, memory and tools intact. On Channels › Phone, the Inbound calls card holds Enabled, Phone number (E.164), Greeting and the carrier's Webhook URL; the Outbound call card dials a number to test it. Full setup is on the Phone calls page.

The character editor's Channels › Phone tab with the Inbound calls card: the Enabled switch, the Phone number (E.164) field and the Greeting field. — The **Inbound calls** card on **Channels › Phone**. While **Enabled** is off, calls to the number are declined; the grey number and greeting are only placeholders.

Press Save before dialling. The number is used as your caller ID only once it is saved.

WhatsApp — answer on WhatsApp Business

On Channels › WhatsApp you set how this character behaves on WhatsApp: Enabled, Greeting, Reaching a person, Voice replies and Read receipts and typing. The Number is read-only here — numbers are connected and assigned in My workspace › Settings › WhatsApp Business. Open the call centre goes to the live WhatsApp inbox. A character that uses a realtime voice model (Gemini Live or OpenAI Realtime) cannot answer on WhatsApp. Full guide: WhatsApp Business.

The character editor's Channels › WhatsApp tab with the WhatsApp Business card, a Number field with no number assigned, the Enabled switch and the Greeting field. — **Channels › WhatsApp** before a number is assigned: **Number** says no number is assigned yet and links to **Settings → WhatsApp Business**, where numbers are given to characters.
